Truck mounted water well drilling rig BZC350DF rotary drilling rig 350 Drill depth 500mm hole diameter

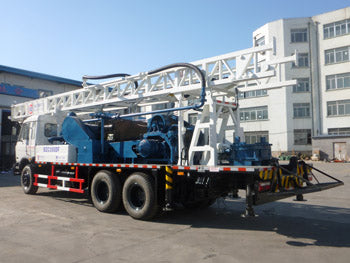

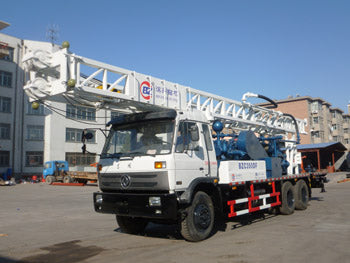

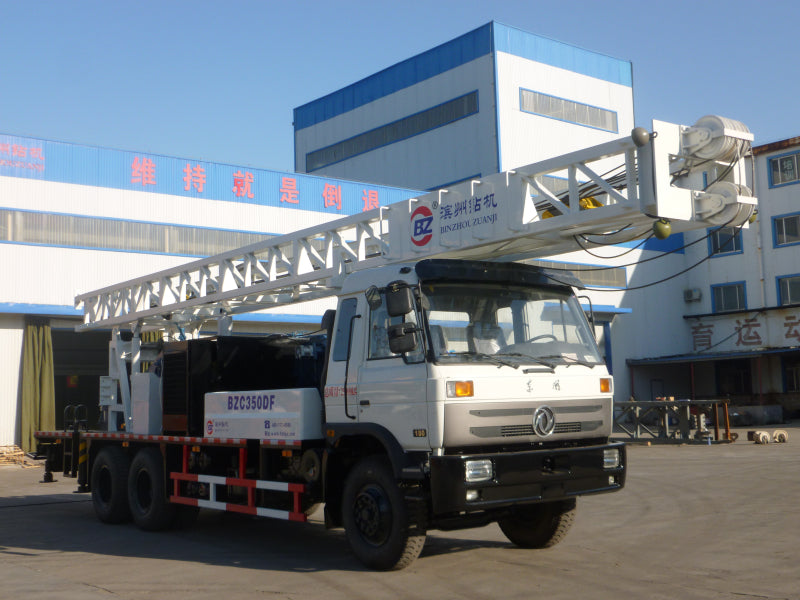

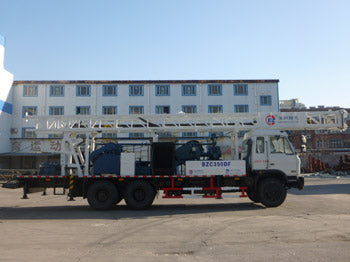

BZC350DF truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
The truck chassis adopts the 6X4 special crane chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump，mast are set up on the chassis.
Main features：
◎ BZC350DF truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
◎ The truck chassis adopts the 6X4 special crane chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump，mast are set up on the chassis.
◎ This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
◎ The power of drilling rig comes from the NC6110ZG17-20(115kw) independent engine, the rig setups distribute implement and hydraulic system.
◎ We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
◎ The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
◎ The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
◎ The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Technical Specification:
|
Technical parameter
|
||||
|
Drilling depth（M）
|
350
|
|||
|
Drilling diameter（mm）
|
500
|
|||
|
Speed of turntable（r/min）
|
50；75；114（reverse）
|
|||
|
Torque of turntable（KN.m）
|
13.2；8.8；5.8（reverse）
|
|||
|
Single rope lifting capacity of mian windlass（KN）
|
30
|
|||
|
The capacity of main windlass(KN)
|
180
|
|||
| Single rope lifting capacity of hydraulic windlass（KN） | 30 | |||
| The capacity of hydraulic windlass(KN) | 120 | |||
| The lifting capacity of hook（KN） |
180
|
|||
|
Bearing capacity of mast (KN)
|
180
|
|||
|
The height of mast (mm)
|
11900
|
|||
|
Bearing capacity (t)
|
25
|
|||
|
Pipe
|
Kelly bar（mm）
|
108×108×7500
|
||
|
Assistant pipe (mm)
|
Ф89×10×5500
|
|||
|
Hydraulic pump
|
Model
|
CB-HP50/32Z
|
||
|
Pump delivery (ml/r)
|
50/32
|
|||
|
Rated speed (r/min)
|
2000
|
|||
|
Rated pressure(MPa)
|
20
|
|||
|
BW850/2A
plunger pump
|
Diameter of cylinder (mm)
|
150
|
||
|
Stroke of piston (mm)
|
180
|
|||
|
Theory of flow (L / min)
|
600 850
|
|||
|
Rated pressure (Mpa)
|
3 2
|
|||
|
Pounding times (min-1)
|
58 82
|
|||
|
Diameter of suction tube (mm)
|
127
|
|||
|
Diameter of drain pipe (mm)
|
64
|
|||
|
Input speed (r / min)
|
470
|
|||
|
Input power (kw)
|
40
|
|||
|
Overall dimensions (mm)
|
2000*1030*1400
|
|||
|
Weight (t)
|
1.5
|
|||
|
Truck chassis
|
Model
|
DFS1251GLJ8
|
||
|
Drive form
|
6×4
|
|||
|
Engine
|
Model
|
YC6J180-33(Europe IV emission standard)
|
||
|
Rated power（KW）
|
132
|
|||
|
Speed （r/min）
|
2500
|
|||
|
Size （L*W*H）(mm)
|
11110×2490×2500
|
|||
|
Drilling engine
|
Model
|
NC611ZG17-20
|
||
|
Rated power (kw)
|
115
|
|||
|
|
||||
|
|
||||
|
Speed (r/min)
|
1100
|
|||
|
|
||||
|
|
||||
|
|
||||
|
The best working gear (or speed)
|
5th gear（1000-1400r/min）
|
|||
|
The highest speed（Km/h）
|
75
|
|||
|
Weight （kg）
|
19340
|
|||
|
Transport size（L*W*H）(mm)
|
12400*2480*3700
|
|||
|
Working size（L*W*H）(mm)
|
10900*4500*13600
|
|||
Selectable configuration:
|
Compressor
|
Brand
|
Displacement
|
Pressure
|
Diesel engine
|
Power
|
|
|
American Sullar1070XH
|
30.3 m3/min
|
2.41Mpa
|
Caterpillar
|
347Kw
|
||
|
Swedish Atlas XRVSI096
|
28.3 m3/min
|
2.0Mpa
|
Caterpillar
|
328Kw
|
||
|
Japan PDSJI00S
|
28.3 m3/min
|
2.11Mpa
|
Mitsubishi
|
327Kw
|
||
|
Kaishan LGCY26/20K
|
26 m3/min
|
2.0Mpa
|
Cummins
|
298Kw
|
||
|
Hongwuhuan HG900/20
|
25.5 m3/min
|
2.0Mpa
|
Cummins
|
239Kw
|
||
|
DTH
|
Origin
|
Model
|
Diameter
|
Length
|
Weight
|
|
|
South Korea
|
TD50
|
130-152mm
|
781mm
|
62Kg
|
||
|
TD80
|
194-254mm
|
1264mm
|
180Kg
|
|||
|
TD100
|
251-305mm
|
1575mm
|
350Kg
|
|||
|
TD112
|
320-381mm
|
1788mm
|
618Kg
|
|||
|
Drill bit
|
DTH
|
Diameter
|
||||
|
TD50
|
146mm
|
|||||
| TD80 |
216mm
|
|||||
|
219mm
|
||||||
|
250mm
|
||||||
|
Dust device
|
||||||
