Nitrogen Booster Gas Compressor
Nitrogen Booster Gas Compressor
  • Load image into Gallery viewer, Nitrogen Booster Gas Compressor
  • Load image into Gallery viewer, Nitrogen Booster Gas Compressor

Nitrogen Booster Gas Compressor

Regular price
$10,000.00
Sale price
$10,000.00
Regular price
Sold out
Unit price
per

Customized products, please inquire before placing an order.

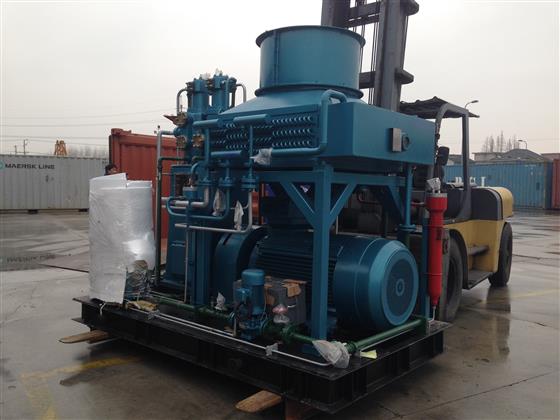

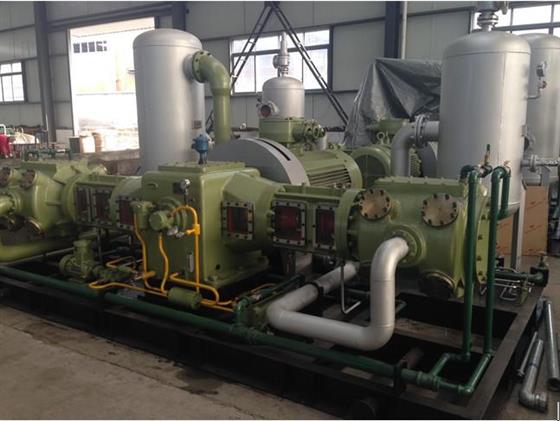

Souair Nitrogen booster gas compressor

No

Name

Unit

Technical parameters

1

model



VF-2.2/10-150

2

Compressor type



V  air cooled reciprocating piston

3

Compression medium



nitrogen

4

State  of intake flow

m3/min

2.2

5

Standard state of flow

Nm3/min

23(an atmospheric pressure 20 degrees)

6

Intake pressure

Mpa

1.0

7

Intake air temperature

Less than 45

8

Exhaust pressure

Mpa

15

9

Exhaust temperature

Less than 180

10

The gas temperature

Less than 65

11

Cooling model



Air cooling

12

Lubrication method



oiling

13

Transmission model



Elastic directly connected

14

Compact series



3

15

Rotate speed



740

16

route



120

17

Cylinder bore

Mm

1-Φ210/50,single action

18

The secondary diameter

Mm

1-Φ150/50,single action

19

Level 3 cylinder diameter

Mm

2-Φ70,single action

20

Shaft  power

Kw

181.4

21

Motor



185KW,380V,50HZ,IP54

22

The fan motor power



8KW,380V,50HZ,IP54

23

Pump motor power



1.5KW,380V,50HZ,IP54

24

Starting mode



Soft start

25

Control



Plc+ transmitter + touch  screen

26

Controlling item



Inlet pressure, primary stress, secondary stress, triple pressure,

oil pressure, exhaust temperature, lubricating oil temperature.

27

Overall dimensions (length*width*height)

Mm

3000*2500*2500

28

Weight

Kg

6500

29

Delivery

day

90





No

Name

Unit

Technical parameters

1

model



VF-1/10-150

2

Compressor type



V  air cooled reciprocating piston

3

Compression medium



nitrogen

4

State  of intake flow

m3/min

1

5

Standard state of flow

Nm3/min

10(an atmospheric pressure 20 degrees)

6

Intake pressure

Mpa

1.0

7

Intake air temperature

Less than 45

8

Exhaust pressure

Mpa

15

9

Exhaust temperature

Less than 180

10

The gas temperature

Less than 65

11

Cooling model



Air cooling

12

Lubrication method



Oil inject

13

Transmission model



Flexible coupling direct connected

14

Compact series



3

15

Rotate speed



740

16

route



92

17

Cylinder bore

Mm

1-Φ175/35,single action

18

The secondary diameter

Mm

1-Φ120/35,single action

19

Level 3 cylinder diameter

Mm

2-Φ45,single action

20

Shaft  power

Kw

82.4

21

Motor



90KW,380V,50HZ,IP54

22

The fan motor power



5KW,380V,50HZ,IP54

23

Pump motor power



1.5KW,380V,50HZ,IP54

24

Starting mode



Soft start

25

Variable speed



Converter

26

Control



Plc+ transmitter + touch  screen

27

Controlling item



Inlet pressure, primary stress, secondary stress, triple pressure,

oil pressure, exhaust temperature, lubricating oil temperature.

28

Overall dimensions (length*width*height)

Mm

2800*2350*2200

29

Weight

Kg

4800

30

Delivery

day

40
