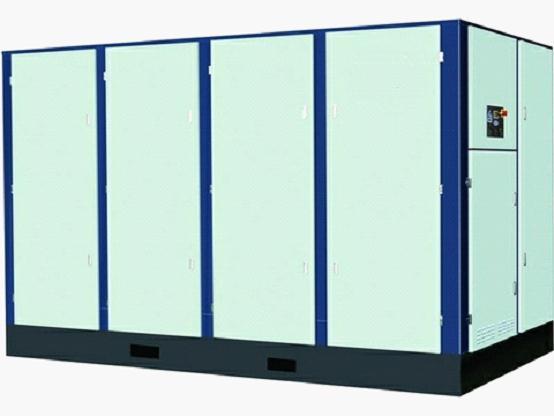

Low pressure screw air compressor
This kind screw compressor is always used for Textile plant,glass plant,cement plant,need 2-5bar compressed air, sometimes reach to 1.5bar pressure compressor.
Characteristic:
1. Save energy
2. Special air end with high efficiency
3. Bigger cooler square
4. High efficiency motor
5. EPC controller,adjusting the flow capacity from compressor.
Technology Data Sheet:
|
Model |
Motor Power |
Pressure |
Flow capacity |
Outlet size |
Weight |
Dimension |
|
（kW） |
（bar） |
（m3/min） |
(KG) |
(L×W×H mm) |
||
|
LG22-5 |
22 |
5 |
5.2 |
G1½” |
700 |
1300×1000×1350 |
|
LG45-5 |
45 |
5 |
9.8 |
DN50 |
1030 |
1350×1150×1450 |
|
LG55-3 |
55 |
3 |
16.7 |
DN80 |
2890 |
3050×1850×2120 |
|
LG75-3 |
75 |
3 |
20.0 |
DN80 |
2960 |
3050×1850×2120 |
|
LG90-3 |
90 |
3 |
23.5 |
DN100 |
3060 |
3050×1850×2120 |
|
LG110-3 |
110 |
3 |
28.5 |
DN100 |
4300 |
3050×1850×2120 |
|
LG132-3 |
132 |
3 |
34.0 |
DN125 |
5800 |
3600×2120×2200 |
|
LG160-3 |
160 |
3 |
41.0 |
DN150 |
5930 |
3600×2120×2200 |
|
LG200-3 |
200 |
3 |
50.0 |
DN80 |
1870 |
2100×1350×1550 |
|
LG250-3 |
250 |
3 |
60.0 |
DN200 |
7200 |
4350×2050×2120 |
Note：1，Power resource：380V/3/50Hz 2，Water cooled type、Special power resource
