Customized products, please inquire before placing an order.
Basic Info.
|
Power Source:
|
AC Power
|
|
Configuration:
|
Stationary
|
|
Type:
|
Centrifugal
|
|
Mute:
|
Yes
|
|
Power Supply(V/pH/Hz):
|
380\/3/50(Can Be Changed)
|
Product Description
Compressor
127-212 m3min /4500-7500 cfm

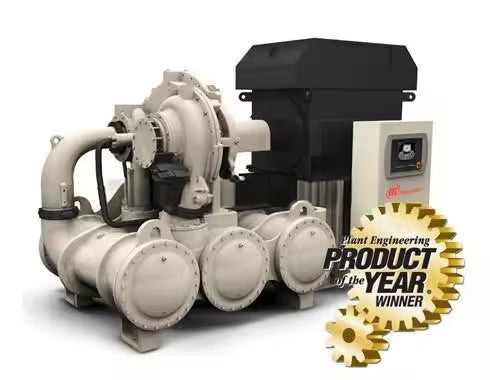

Ingersoll Rand's new C1000 centrifugal air compressor offers the very best of both time-proven and new technologies, including over 50 design improvements to ensure the highest levels of reliability, efficiency and productivity available today. From our "anywhere access" advanced controller to our optimized aerodynamic design, our new energy-efficient C1000 delivers maximum performance with lasting value.
*Note: All dimensions and weights provided in specification data are for water-cooled units.
Features
Long-life gearing, bearings and components
Leak-free seals and connections
Simplified piping, integrated components, fewer connections
Lower cost of ownership
Efficiency, Optimized Components and Systems
Industry-leading performance
Ultra low pressure drop cooling system
100% oil-free air under all operating conditions
Reduced energy use and operating costs
Productivity, User-Friendly Operation and Accessibility
Easy access to all critical components
Plug and play compressor packages for efficient installation
Informative and intuitive web-enabled controller
Minimal downtime
127-212 m3min /4500-7500 cfm
Ingersoll Rand's new C1000 centrifugal air compressor offers the very best of both time-proven and new technologies, including over 50 design improvements to ensure the highest levels of reliability, efficiency and productivity available today. From our "anywhere access" advanced controller to our optimized aerodynamic design, our new energy-efficient C1000 delivers maximum performance with lasting value.
*Note: All dimensions and weights provided in specification data are for water-cooled units.
Features
Long-life gearing, bearings and components
Leak-free seals and connections
Simplified piping, integrated components, fewer connections
Lower cost of ownership
Efficiency, Optimized Components and Systems
Industry-leading performance
Ultra low pressure drop cooling system
100% oil-free air under all operating conditions
Reduced energy use and operating costs
Productivity, User-Friendly Operation and Accessibility
Easy access to all critical components
Plug and play compressor packages for efficient installation
Informative and intuitive web-enabled controller
Minimal downtime
|
Model
|
Rated Pressure (barg / psig)
|
Nominal Power (kW / hp)
|
Flow (m3min / cfm)
|
Length (cm / in)
|
Width (cm / in)
|
Height (cm / in)
|
Weight (kg / lbs)
|
|
C1000
|
3.4-10.3 / 50-150
|
500-1100 / 700-1500
|
127-212 / 4500-7500
|
430 / 170
|
220 / 90
|
270 / 110
|
18,180 / 40,000
|
