DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI
DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI
DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI
  • Load image into Gallery viewer, DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI
  • Load image into Gallery viewer, DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI
  • Load image into Gallery viewer, DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI

DOOSAN portable diesel screw air compressor--XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI

Regular price
$50,000.00
Sale price
$50,000.00
Regular price
Sold out
Unit price
per

Customized products, please inquire before placing an order.

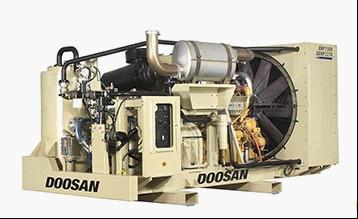

XXHP1270/XHP1500FCAT Dual Pressure - High Flow 500 and 350 PSI

This innovative unit provides a small footprint with the highest power density in the industry in terms of the flow/pressure combination from a standard compressor package. This unit offer as standard, dual flow and dual pressure.  The control system allows variable flow from 1270 to 1500 cfm during operation between 350 and 500 psi to maximize customer productivity based on the needs of the application.  Drill deeper and with more productivity than ever
Applications
These innovative, open frame compressors provide a small footprint with the highest power density in the industry in terms of the flow and pressure combination.
The innovative XXHP1270/XHP1500 offers as standard, dual flow and dual pressure. The control system allows flow for 1270 to 1500 cfm during operation at 500
and 350 psi to maximize productivity for the applications. Drill deeper and with more productivity than ever before.

Features
Tech Specs
Brand                                                                           Ingersoll Rand (Doosan)
Model Number                                                           XXHP1270-XHP1500FCAT
Type                                                                           Dual Pressure Air Compressor
CFM                                                                          1270 - 1500
Pressure Range (psi)                                                  175 - 375, 400 - 525
Rated Operating Pressure - psi (bar)                   500 (34.5) - 350 (24.1)
Air Discharge Outlet NPT (in)                                   3
Air Discharge Outlet Quantity                                 1
Compressor Oil Capacity - gal (L)                           85 (322)
Engine Make/Model                                                   Caterpillar/C18
Emissions Tier Level                                                   Tier 3
Number of Cylinders                                                   6
Displacement - cu in (L)                                           1105 (18.1)
RPM                                                                           1625/1850
Idle Speed - rpm                                                       1350
Bhp (kW) @ Rated Speed                                            700 (522)
Electrical - volts/battery qty                                         24/(2)  1400 CCA - optional
Engine Oil Capacity - qt (L)                                    50 (47.3)
Radiator Coolant Capacity - gal (L)                            13.5 (51.10)
Fuel Tank Capacity - gal (L)                                     20 (75.7) day tank option
Overall Length - in (mm)                                               184.1 (4676)
Overall Width - in (mm)                                             89.2 (2266)
Overall Height - in (mm)                                             89.5 (2273)
Working Weight - w/ Fuel - lb (kg)                             16910 (7686)
Tire Size                                                                             7.5-16LT  Wagon/8-14.5LT Tandem
Shipping Weight - lb (kg) no fuel                             9370 (4250) Wagon/9480 (4300) Tandem
Working Weight - lb (kg) with fuel                             10560 (4790) Wagon/10460 (4745) Tandem*
Overall Length - in (mm)                                             153 (3886)
Overall Width - in (mm)                                              79 (2007)
Overall Height - in (mm)                                               80.4 (2042)
Working Weight - lb (kg) with fuel                              10110 (4586)
Overall Height - in (mm)                                               77 (1956)
Shipping Weight - lb (kg) no fuel                               7650 (3450) est.
Working Weight - lb (kg) with fuel                                8500 (3850) est.
