Customized products, please inquire before placing an order.
750-1500 CFM
High-pressure compressors
Doosan Portable Power builds thier compressors with the customer in mind. The backlit gauges on the panel are intuitively placed, the layout of the cool-box design allows quick service, and the paint quality, weld strength, and reliability are just some of the things that enhance your product experience. Our compressors offer the right level of technology, from years of proven direct engine control to our innovative microcontroller and more. We listened to our customers and optimized the mechanical control of the inlet and oil temperature valves without electronics, but with fuel efficiency and durability in mind. The running gear system is designed with life-extending features that provide security mile after mile. No wonder our compresors set the standard by which others are measured.
|
MODEL |
XHP750WCAT |

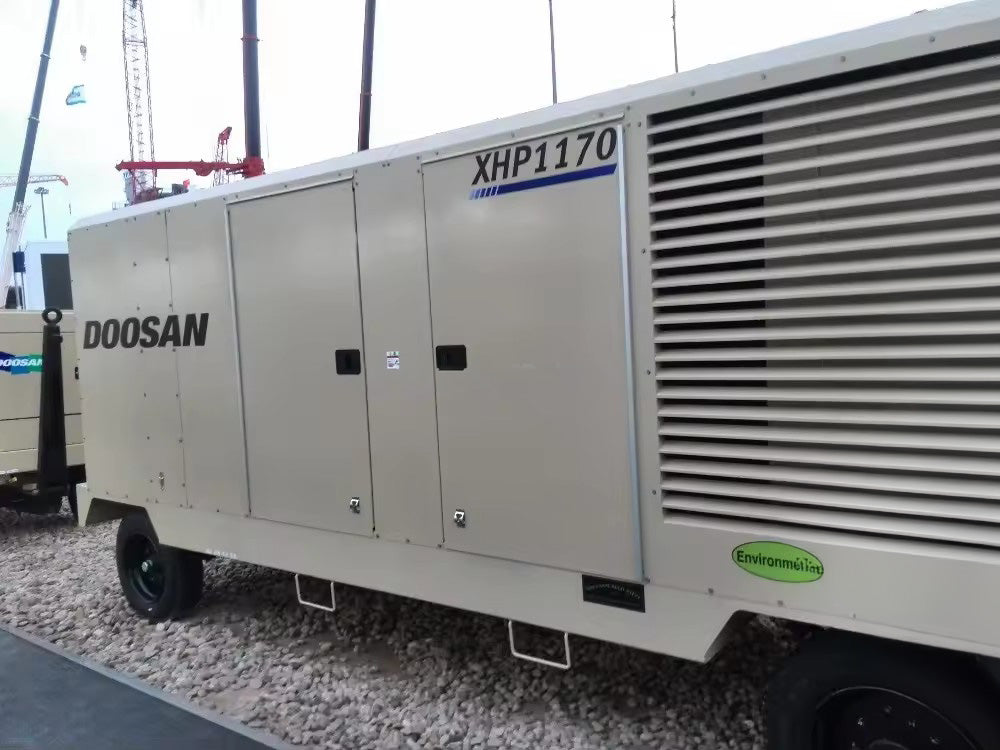

XHP1170WCAT |
XHP1170FCAT |
XXHP1270/XHP1500FCAT |
||||||
|
COMPRESSOR |
|
|||||||||
|
Free-air Delivery – cfm (m3/min) |
750 (21.2) |
1170 (33.1) |
1170 (33.1) |
1270 (36)-1500 (42.5) |
||||||
|
Rated Operating Pressure – psig (bar) |
300 (21) |
350 (24.1) |
350 (24.1) |
500 (34.5)-350 (24.1) |
||||||
|
ENGINE |
|
|||||||||
|
Make/Model |
CAT/C9 |
CAT/C15 |
CAT/C15 |
CAT/C18 |
||||||
|
Emissions Tier Level |
Tier 3 |
Tier 3 |
Tier 3 |
Tier 3 |
||||||
|
Rated Speed – rpm |
1800 |
1800 |
1800 |
1625/1850 |
||||||
|
Bhp (kW) @ Rated Speed |
300 (223.7) |
540 (402.6) |
540 (402.6) |
700 (522) |
||||||
|
Fuel Tank Capacity – gal (L) |
110 (416) tandem |
Tank 1 – 98 (369) |
14 (52) day tank option |
20 (75.7) day tank option |
||||||
|
DIMENSIONS w/ running gear |
|
|||||||||
|
Length – in (mm) |
163 (4140) wagon 215 (5461) tandem |
222.4 (5649) wagon 290.5 (7379) tandem |
NA |
NA |
||||||
|
Width – in (mm) |
79 (2007) |
90 (2286) |
NA |
NA |
||||||
|
Height – in (mm) |
91.2 (2316) wagon 87.9 (2233) tandem |
101.8 (2586) wagon 100 (2540) tandem |
NA |
NA |
||||||
|
Shipping Weight — No Fuel – lb (kg) |
9370 (4250) wagon 9480 (4300) tandem |
16100 (7303) wagon 16420 (7464) tandem |
NA |
|||||||
