Product Information

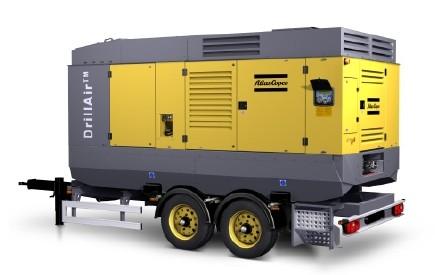

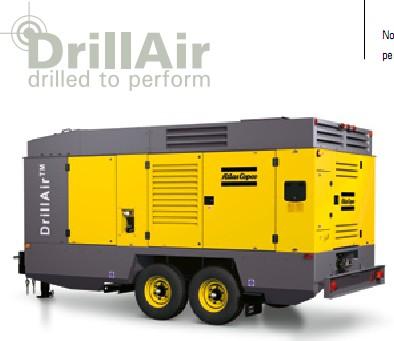

At Atlas Copco we understand your requirements in the tough world of industrial drilling, where reliability and easy maintenance are as essential as high-pressure air. Our DrillAir portable compressors deliver high capacity, high pressure effectively, reliably and cost-efficiently. You can further enhance their fuel consumption with the innovative FuelXpert system, while Oiltronix technology enables the components to last longer. Powered by heavy-duty Caterpillar engines, DrillAir compressors allow you to drill deeper and larger holes at the fastest penetration rates and with the highest productivity. All models are available in versions that meet the latest exhaust emission and noise directive criteria.
Customer Benefits
DrillAirXpert offers an improved alternative to competitors systems by allowing full flexibility on pressure and flow regulation. The variable system is able to easily provide the exact pressure required when needed between 22-35 bar (300-510 psi). It can also be set to provide a fully regulated flow output of up to 673 l/s (1500 cfm).
Economical·You can achieve large fuel savings at partial compressor load with FuelXpert, which electronically regulates engine speed and the air inlet valve to optimize fuel consumption.
Energy savingsand highest air volume with the DrillAir｢ screw element.
Comfortable for your operators·Silencing foam and buffers reduce noise levels, improving the conditions for your operators and guaranteeing full compliance with all directives for outside noise.
Easy operation·With the user-friendly control panel you get comprehensive digital diagnostics, a clear display, easy parameter setting and rapid access to your stored data.
Smooth, fast on-road towing and high maneuverability thanks to a tandem undercarriage.
Ultra-reliable·Oil tronix V2 avoids formation of water in the compressor oil system leading to extended element lifetime.
Technical Data
|
Technical Specifications
|
|
|
Normal effective working pressure
|
25 - 35 bar
|
|
Air flow (FAD)
|
550 - 630 l/s
|
|
Air flow (FAD)
|
33 - 37.8 mﾂｳ/min
|
|
Sound power level
|
104 dB(A)
|
|
Engine
|
Caterpillar C18 ACERT T3
|
|
Weight
|
7200 - 10100 kg
|
|
Length
|
5.4 - 6.8 m
|
|
Width
|
2.25 - 2.53 m
|
|
Height
|
2.51 - 3.05 m
|
Customized products, please inquire before placing an order.
