Customized products, please inquire before placing an order.

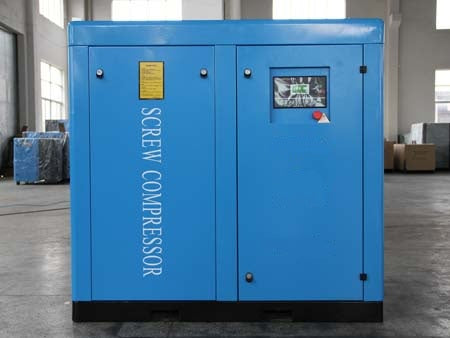

Stationary Screw Air Compressor
Discharge capacity: 0.8~6.58m3/min
Discharge pressure:0.7-1.3Mpa
Installed power: 10HP(7.5KW)~50HP(37KW)
|
Model
|
LG-7.5A
|
LG-11A
|
LG-15A
|
LG-18.5A
|
LG-22A
|
LG-30A
|
LG-37A
|
|
Flow Capacity(M3/min)/
Pressure(Bar)
|
1.2/7
|
1.65/7
|
2.25/7
|
3.22/7
|
3.60/7
|
5.2/7
|
6.58/7
|
|
1.1/8
|
1.53/8
|
2.03/8
|
3.01/8
|
3.56/8
|
5.06/8
|
6.26/8
|
|
|
0.96/10
|
1.32/10
|
1.82/10
|
2.52/10
|
3.07/10
|
4.53/10
|
5.80/10
|
|
|
0.8/13
|
1.1/13
|
1.55/13
|
2.3/13
|
2.84/13
|
3.90/13
|
5.06/13
|
|
|
Cooling Type
|
A/C
|
A/C
|
A/C
|
A/C
|
A/C
|
A/C
|
A/C
|
|
Driven Method
|
V-Belt
|
V-Belt
|
V-Belt
|
V-Belt
|
Coupling
|
V-Belt
|
Coupling
|
|
Power(KW)
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
|
Dimension(L*W*H)MM
|
795*670*940
|
820*700*1050
|
880*710*1040
|
1020*800*1190
|
1020*800*1190
|
1030*860*1320
|
1140*920*1360
|
|
Weight(Kg)
|
240
|
350
|
420
|
540
|
610
|
660
|
840
|
|
Outlet size
|
1/2''
|
3/4''
|
3/4''
|
G1''
|
G1''
|
G1 1/2''
|
G1 1/2''
|
|
|
|
|
|
|
|
|
|
|
Compressed stage: single ; V/F: 380V/460V,50Hz/60Hz,3Ph ; Ambient Temperature -5℃ ~ 46℃ ； Startup: Delta star
|
|||||||
